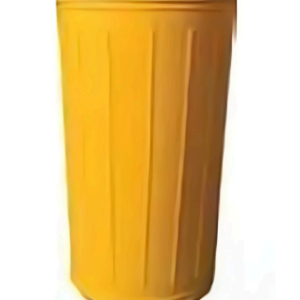

The debris hopper forms the loading inlet at each working floor of a construction chute system. Its UV-resistant polyethylene body includes suspension lugs and a tapered connection, with a 1,200 mm total length, 1,050 mm working length and an approximate 15 kg weight.
| Specification | Details |
|---|---|

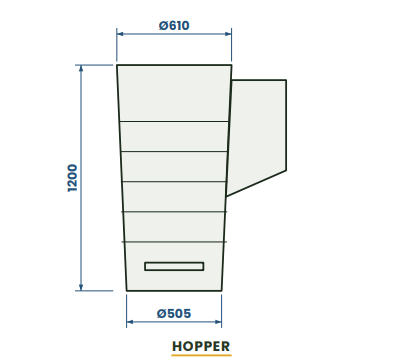

| Total length | 1,200 mm |
| Working length | 1,050 mm |
| Outer diameter (top / bottom) | 610 / 505 mm |
| Average weight | 15 kg |
| Wall thickness | 5 mm (average) |
| Specification | Details |
|---|---|
| Material | High-quality UV-resistant polyethylene |
| Colour | High-visibility yellow |
| Connection | Ribbed tapered sections with adjustable overlap |
| Origin | Manufactured in the UAE |
| Typical floor set | 1 hopper + 1 bracket pair + 3 sections |
| Installation | By competent personnel following the method statement |
