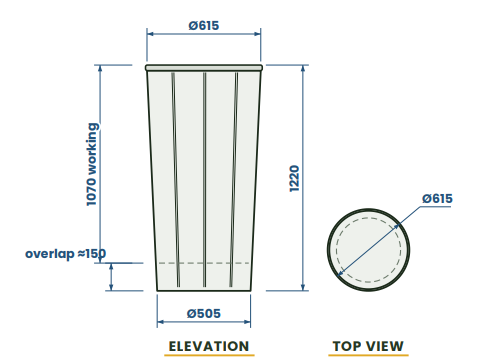

A ribbed, tapered polyethylene section that telescopes into adjacent sections to create the vertical debris chute. Each module has a 1,220 mm total length, 1,070 mm working length and an approximate weight of 12 kg, allowing adjustable overlap within the suspended system.
| Specification | Details |
|---|---|
| Total length | 1,220 mm |
| Working length | 1,070 mm |
| Outer diameter (top / bottom) | 615 / 505 mm |
| Average weight | 12 kg |
| Wall thickness | 5 mm (average) |
| Specification | Details |
|---|---|
| Material | High-quality UV-resistant polyethylene |
| Colour | High-visibility yellow |
| Connection | Ribbed tapered sections with adjustable overlap |
| Origin | Manufactured in the UAE |
| Typical floor set | 1 hopper + 1 bracket pair + 3 sections |
| Installation | By competent personnel following the method statement |
