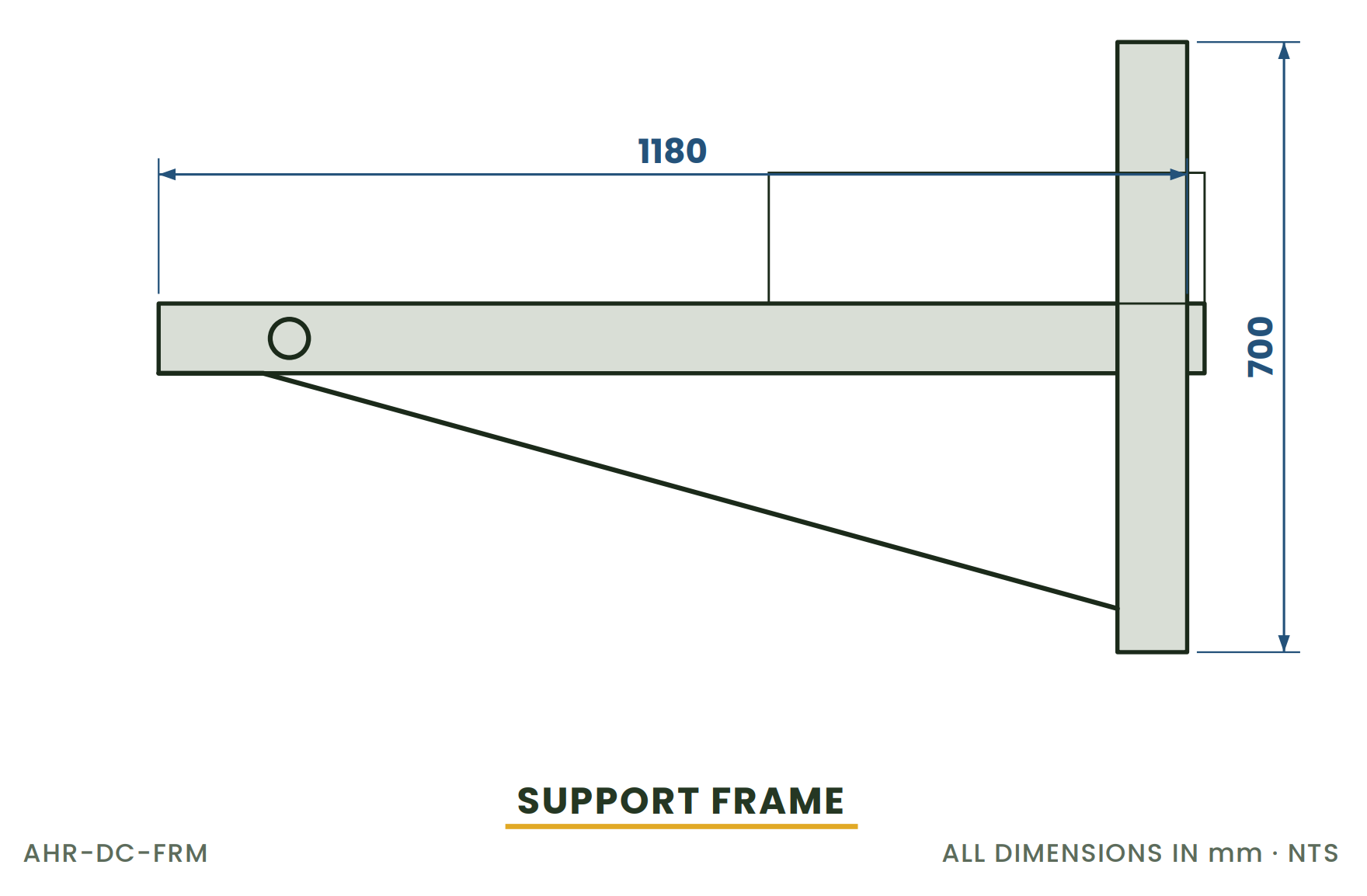

A hot-dip galvanised steel cantilever support bracket for the debris chute at a slab edge. The catalogue specifies an S275 steel RHS section, a 1,180 mm arm and four M16 chemical anchors, with one bracket pair forming the support arrangement at each floor.
| Specification | Details |
|---|---|
| Section | RHS 80 × 80 × 4, S275 |
| Arm length | 1,180 mm |
| Anchors | 4 × M16 chemical anchors |
| Finish | Hot-dip galvanised |
| Per | 1 pair of brackets |
| Specification | Details |
|---|---|
| Material | High-quality UV-resistant polyethylene |
| Colour | High-visibility yellow |
| Connection | Ribbed tapered sections with adjustable overlap |
| Origin | Manufactured in the UAE |
| Typical floor set | 1 hopper + 1 bracket pair + 3 sections |
| Installation | By competent personnel following the method statement |
