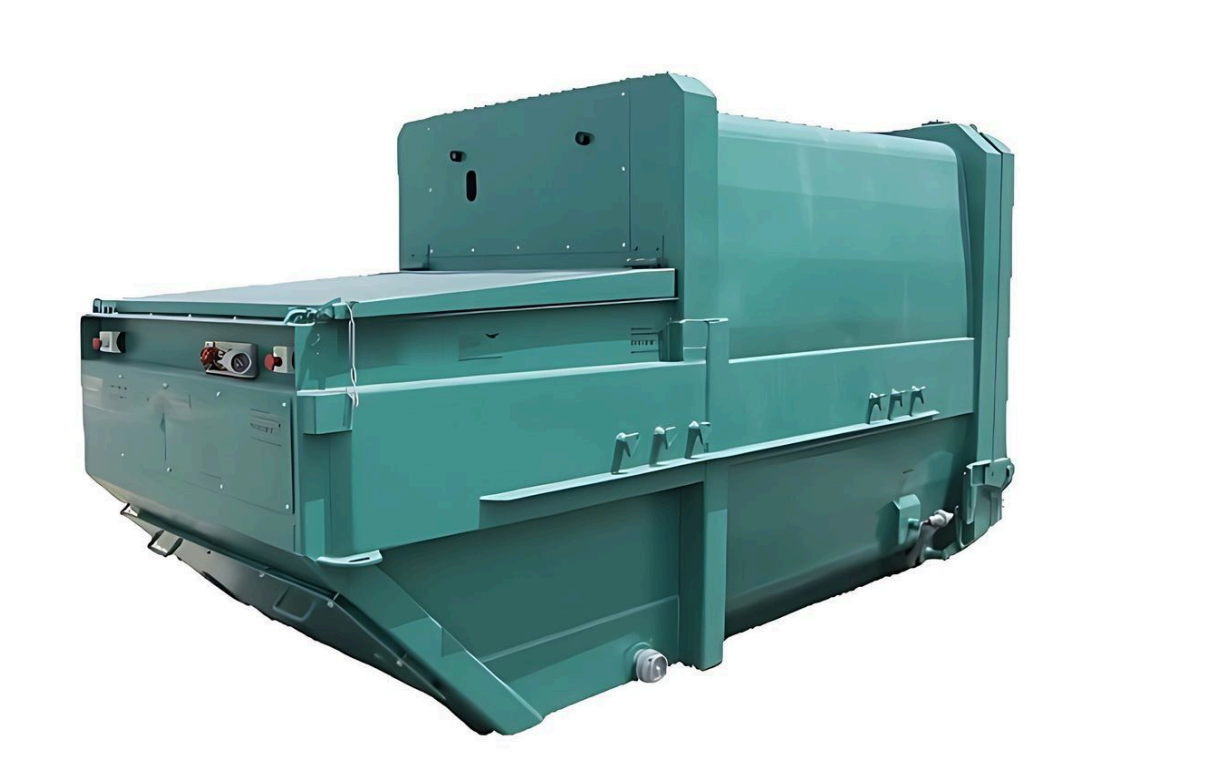

A portable horizontal-ram compactor with an X4 hopper for chain-loader collection systems. Intended for supermarkets, hotels and hospitals, it uses a 5.5 kW, 400 V drive and a 1,310 mm hopper height, with a listed 33-second operating cycle.
| Specification | Details |
|---|---|
| Actuating power | 5.5 kW · 400 V / 50 Hz · 16 A |

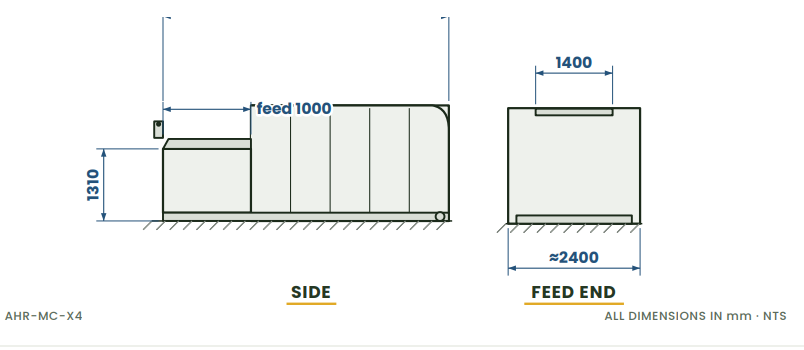

| Hopper height | 1,310 mm |
| Feed opening (upper / lower) | 1,200 × 1,500 mm / 835 × 1,360 mm |
| Ram capacity/stroke | 1.25 m³ / 1,130 mm |
| Compaction force | 28 kN/m² |
| Cycle time | 33 seconds |
