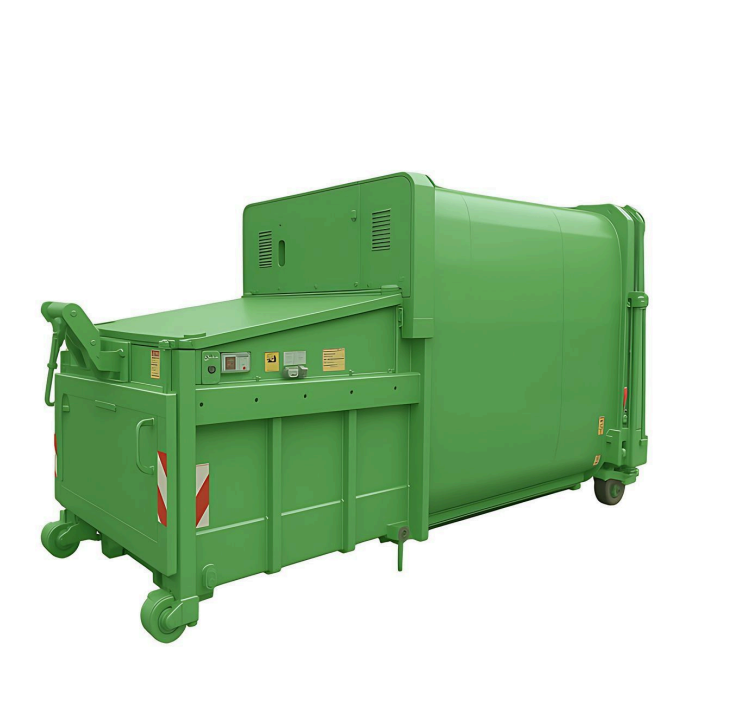

The X5 mobile compactor suits hook-loader systems and combines its compaction head and container body in one welded unit. A 5.5 kW drive, 1.25 m³ ram capacity and 1,310 mm hopper height support routine waste compaction and collection.
| Specification | Details |
|---|---|
| Actuating power | 5.5 kW · 400 V / 50 Hz · 16 A |
| Hopper height | 1,310 mm |
| Feed opening (upper / lower) | 1,200 × 1,500 mm / 835 × 1,360 mm |
| Ram capacity / stroke | 1.25 m³ / 1,130 mm |
| Compaction force | 28 kN/m² |
| Cycle time | 33 seconds |
