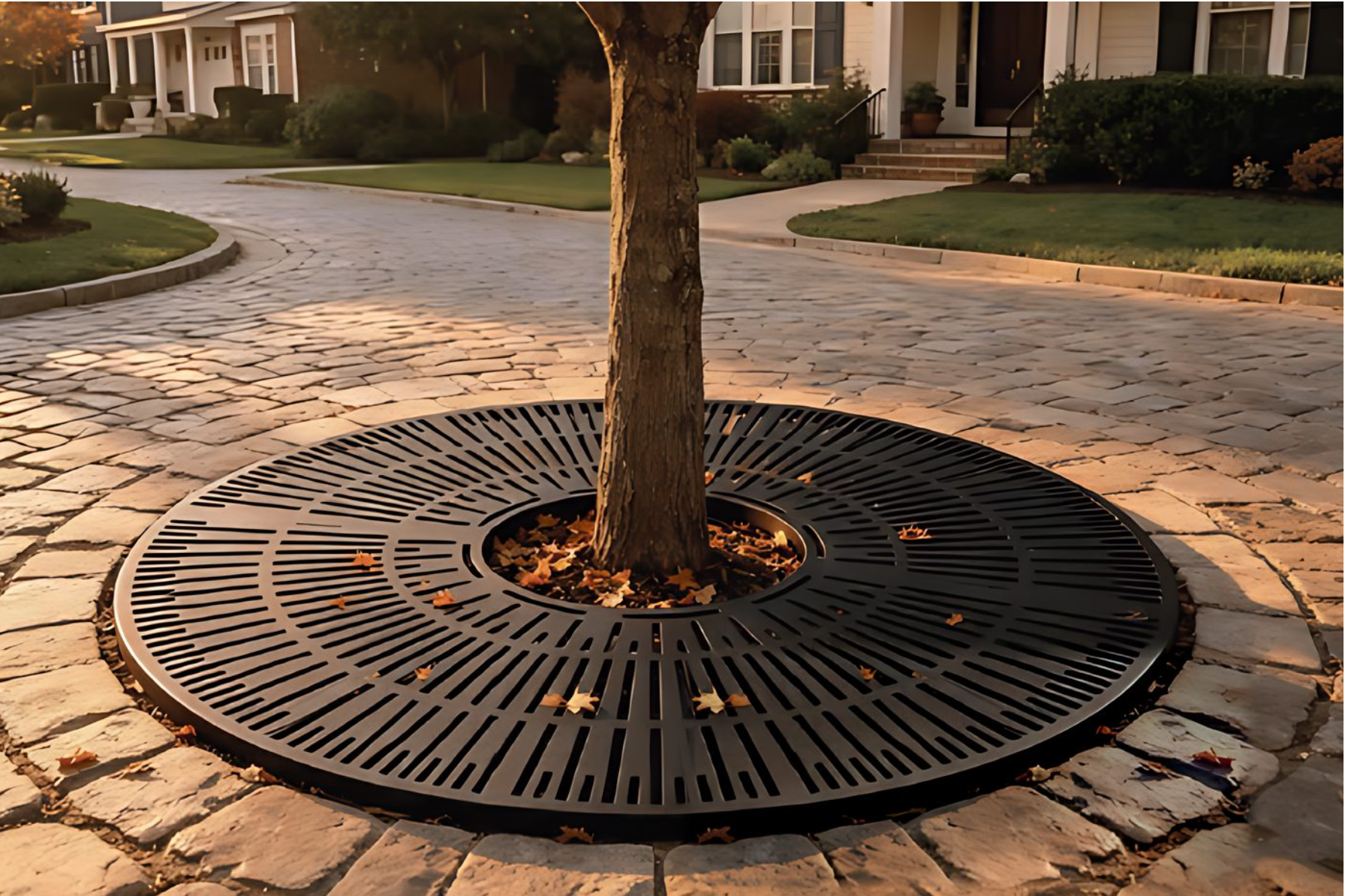

AHR-TG-01 Round Tree Grate – Radial

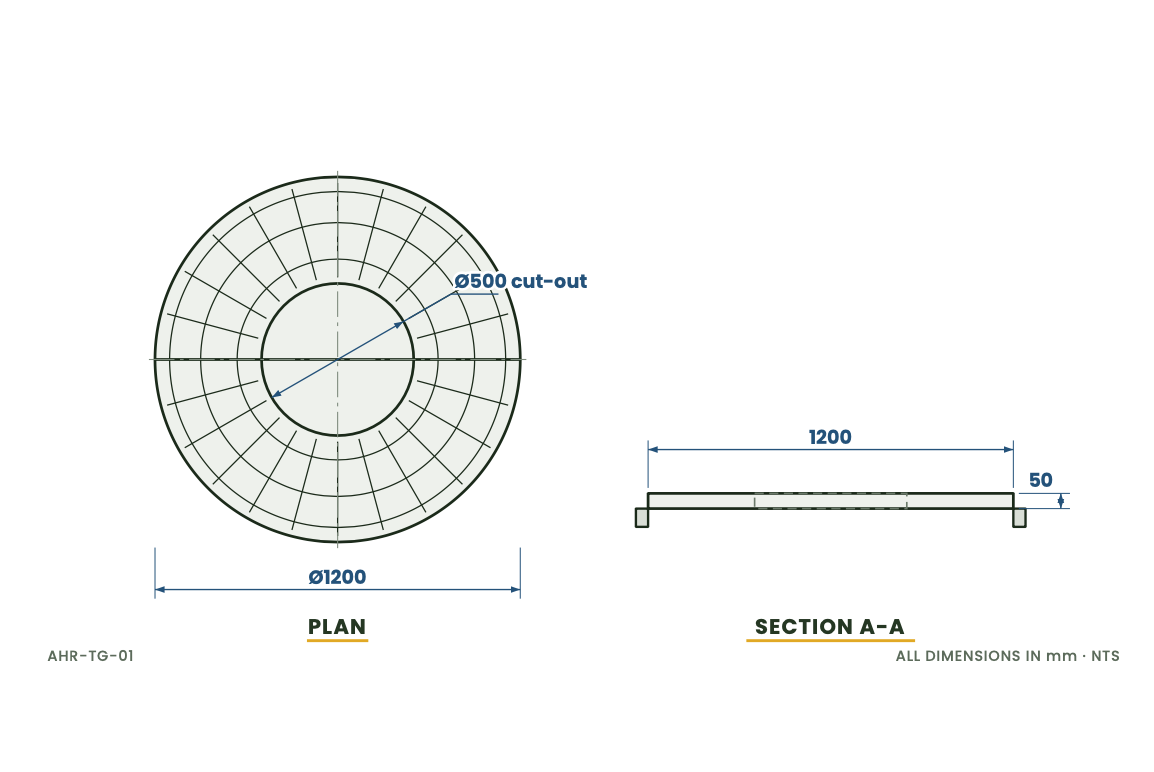

A round, two-piece tree grate with radial slots and a central trunk opening. Cast iron or laser-cut steel construction is listed, with a 1,200 mm overall diameter, 500 mm cut-out and 50 mm overall depth.
| Specification |
Details |
| Overall size |
Ø1,200 × 50 mm |
| Cut-out |
Ø500 mm |
| Material |
Cast iron / laser-cut steel |
| Sections |
2 halves |
