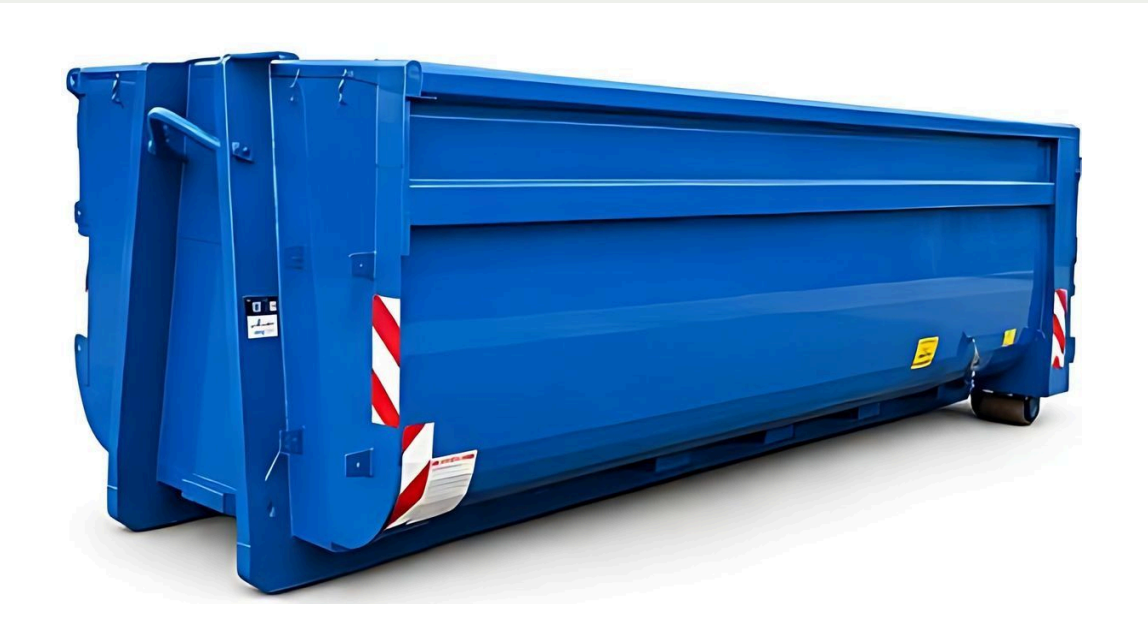

A 20 m³ hook-lift container for higher-volume construction, industrial and municipal collection. Its 5,500 × 2,400 × 1,500 mm internal format features a high-strength steel body, double rear doors, a 50 mm hook bar and an approximate 2,400 kg tare weight.
| Specification | Details |
|---|---|
| Inside dimensions (L × W × H) | 4,500 × 2,400 × 1,500 mm |
| Volume | 16 m³ |
| Weight | Approximately 1,750 kg |
| Plate thickness | Bottom: 5 mm; walls/door: 3 mm |
Common Specifications – Hook-Lift & RORO
| Specification | Details |
|---|---|
| Standard | DIN 30722-1 or local standard |
| Steel | S460MC / Domex 460 or equivalent |
| Hook / subframe | Ø50 hook bar; IPN 180 longitudinals |
| Rollers | Ø160 mm, polyamide or steel, greasable |
| Doors | Double rear door with central lock and side safety lock |
| Finish | Primer + RAL topcoat; tarpaulin hooks all round |
