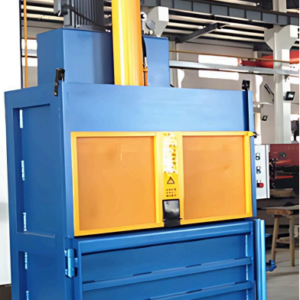

A 120 kN vertical baler for logistics, printing and packaging operations. The 3 kW, 400 V machine combines an 800 × 495 mm loading opening with three-strap baling, producing approximately 100 kg bales in an 800 × 600 × 600 mm format.
| Model | Force | Power (kW) | Feed opening W × H (mm) | Bale size L × W × H (mm) | Bale weight (kg) | Machine L × W × H (mm) | Machine weight (kg) |
|---|---|---|---|---|---|---|---|
| HV-10 | 10 t | 2.2 | 600 × 360 | 600 × 400 × (400–640) | 35–60 | 950 × 760 × 2,070 | 500 |
| HV-30 | 30 t | 5.5 | 800 × 450 | 850 × 600 × (300–800) | 80–160 | 1,200 × 1,000 × 2,900 | 1,150 |
| HV-50 | 50 t | 7.5 | 1,100 × 550 | 1,100 × 750 × (500–1,000) | 250–350 | 1,580 × 1,080 × 3,140 | 1,900 |
| HV-60 | 60 t | 11 | 1,200 × 550 | 1,200 × 800 × (500–950) | 300–400 | 1,660 × 1,180 × 3,300 | 2,100 |
| HV-80 | 80 t | 15 | 1,200 × 550 | 1,200 × 800 × (500–950) | 400–500 | 1,750 × 1,200 × 3,300 | 2,300 |
| HV-100 | 100 t | 18.5 | 1,200 × 550 | 1,000 × 900 × 400 | 450–550 | 1,800 × 1,240 × 3,460 | 6,000 |
